EHL05US12-P

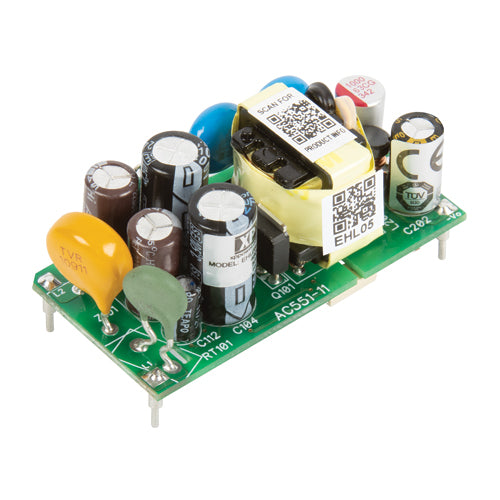

12 Volts 0.42 Amps, Class II, 5W Open Frame Power Supply, AC Input: 85-528VacManufacturer: XP Power
View Data Sheet
In Stock: 6 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$19.49
5
$18.91
10
$18.32
25
$17.55
100
$16.38
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~528Vac
Output Voltage:
12Vdc
Output Max Current:
0.42 Amps
Max Power:
5 Watts
Features
Open frame AC/DC power supply
Wide AC input range: 85~528Vac
Phase to neutral or phase to phase operation
Operating temperature range: -40~+80°C
Industrial safety certifications: IEC/EN 62368-1, UL 62368-1
Class II
Overvoltage category III
No load power consumption: ≤0.3W
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
