ECL25US15-T

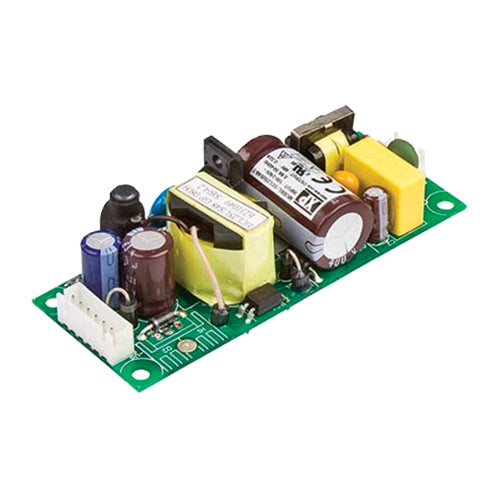

15Vdc 1.67A, Open Frame Power Supply, Peak Current, 15 Volts 1.67 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$46.97
5
$45.55
10
$44.15
25
$42.27
100
$39.46
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
15Vdc
Output Max Current:
1.67 Amps
Output Peak Current:
2.17 Amps
Max Power:
25 Watts
Features
XP Power ECL25US15-T open frame power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Class II
Peak power up to 130% for <30 sec
Reinforced I/O isolation 3000Vac
No load power consumption <0.3W
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
