ECL15US12-P
12Vdc 1.25A, Open Frame Power Supply, PCB Mount, Peak Current, 12 Volts 1.25 AmpsManufacturer: XP Power
View Data Sheet
In Stock: 5 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$36.58
5
$35.49
10
$34.39
25
$32.92
100
$30.73
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
1.25 Amps
Output Peak Current:
1.62 Amps
Max Power:
15 Watts
Features

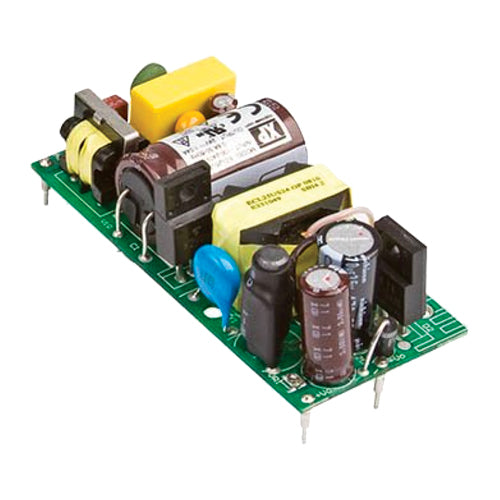

XP Power ECL15US12-P open frame PCB mount power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Class II
Peak power up to 130% for <30 sec
Reinforced I/O isolation 3000Vac
High power density: 5.3W/in³
No load power consumption <0.3W
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
ECL15US12-P
12Vdc 1.25A, Open Frame Power Supply, PCB Mount, Peak Current, 12 Volts 1.25 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
1.25 Amps
Output Peak Current:
1.62 Amps
Max Power:
15 Watts
Features
XP Power ECL15US12-P open frame PCB mount power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Class II
Peak power up to 130% for <30 sec
Reinforced I/O isolation 3000Vac
High power density: 5.3W/in³
No load power consumption <0.3W
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
