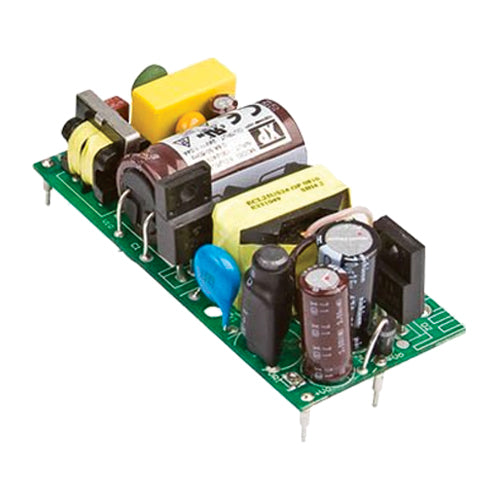

ECL05US09-P
9Vdc 0.55A, Open Frame Power Supply, PCB Mount, Peak Current, 9 Volts 0.55 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$26.84
5
$26.04
10
$25.23
25
$24.16
100
$22.55
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
9Vdc
Output Max Current:
0.55 Amps
Output Peak Current:
0.71 Amps
Max Power:
5 Watts
Features
XP Power ECL05US09-P PCB mount power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Protection Class II
Peak power
Reinforced I/O isolation 3000Vac
High power density: 2.25W/in³
No load power consumption ≤0.3 watts
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
