Power Worth Searching For

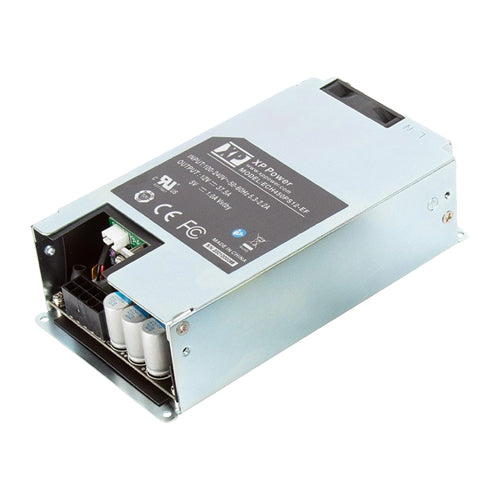

ECH450PS15-EF
15Vdc 30A, Medical & ITE Power Supply, Enclosed with Side Fan, 15 Volts 30 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$203.67
5
$197.56
10
$191.44
25
$183.30
100
$171.07
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
15Vdc
Output Max Current:
30 Amps
Max Power:
450 Watts
Features
XP Power ECH450PS15-EF enclosed power supply
AC input range: 90~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF applications
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Built-in fan
Low earth leakage current ≤300µA
Built-in PFC
No load power consumption <0.21 Watts
Built-in 5V/1A standby output
Built-in remote On/Off
Remote sense
High power density: 21W/cubic inch
Operation up to 5000m altitude
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
ECH450PS15-EF
15Vdc 30A, Medical & ITE Power Supply, Enclosed with Side Fan, 15 Volts 30 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
15Vdc
Output Max Current:
30 Amps
Max Power:
450 Watts
Features
XP Power ECH450PS15-EF enclosed power supply
AC input range: 90~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF applications
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Built-in fan
Low earth leakage current ≤300µA
Built-in PFC
No load power consumption <0.21 Watts
Built-in 5V/1A standby output
Built-in remote On/Off
Remote sense
High power density: 21W/cubic inch
Operation up to 5000m altitude
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$203.67
5
$197.56
10
$191.44
25
$183.30
100
$171.07
REQUEST a QUOTE for higher qty discounts
