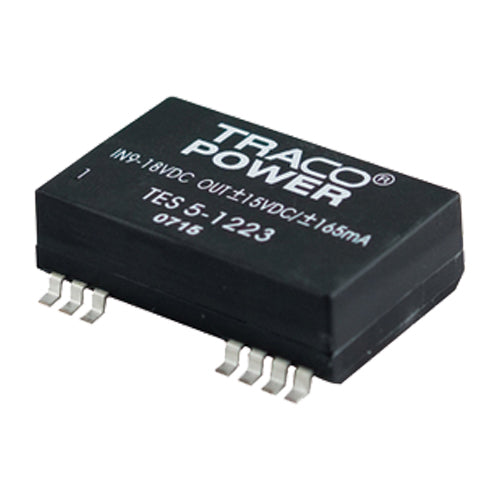

TES 5-1223
Dual O/P, DC-DC Converter SMD Package 2:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$39.06
10
$31.38
25
$30.16
100
$25.96
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
9~18Vdc
Output Voltage #1:
15Vdc
Output #1 Max Current:
0.165 Amps
Output Voltage #2:
-15Vdc
Output #2 Max Current:
0.165 Amps
Max Power:
5 Watts
Features
TRACO Power TES 5-1223 low profile SMD package DC/DC converter
Wide 2:1 input voltage range
Operating temperature: -40~+85°C
I/O isolation 1500Vdc
High accuracy of pin co-planarity
Remote On/Off
Short circuit protection
TRACO Power 3 year warranty
