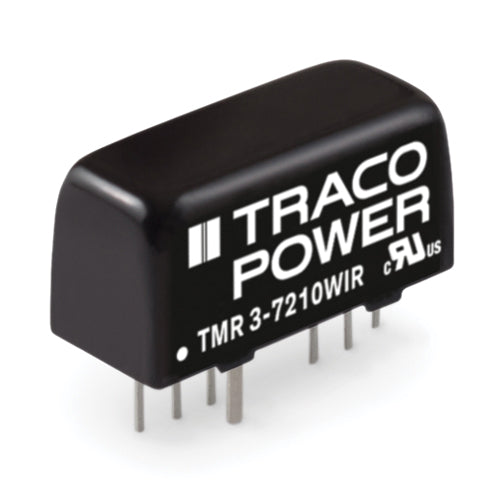

TMR 3-7215WIR
24Vdc 0.125A, 24 Volt DC/DC Converter Wide Input Voltage Range Compact SIP-8 Package, RailwayManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$26.80
10
$25.19
25
$24.21
100
$21.69
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
43~160Vdc
Output Voltage:
24Vdc
Output Max Current:
0.125 Amps
Max Power:
3 Watts
Features
TRACO Power TMR 3-7215WIR compact SIP-8 package railway DC/DC converter
Ultra wide input voltage range
Operating temperature: -40~+90°C
Safety approvals: IEC/EN/UL 60950-1
EN 50155 railway approval
Metal case
Remote On/Off
I/O isolation 3000Vdc
Fully regulated outputs
Protections: short circuit / current limitation
TRACO Power 3 year warranty
