TMH 0515D
Dual O/P, DC-DC Converter SIP-6 PackageManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
4.5~5.5Vdc
Output Voltage #1:
15Vdc
Output #1 Max Current:
0.065 Amps
Output Voltage #2:
-15Vdc
Output #2 Max Current:
0.065 Amps
Max Power:
2 Watts
Features

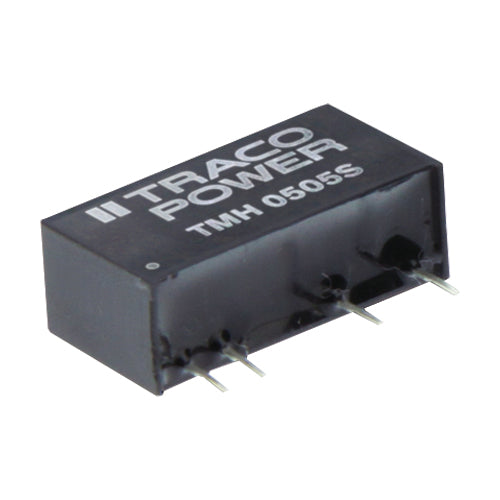

TRACO Power TMH 0515D miniature SIP-6 package DC/DC converter
Operating temperature: -40~+85°C
I/O isolation 1,000Vdc
High efficiency
Industry standard pinout
Short circuit protection
TRACO Power 3 year warranty
TMH 0515D
Dual O/P, DC-DC Converter SIP-6 PackageManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
4.5~5.5Vdc
Output Voltage #1:
15Vdc
Output #1 Max Current:
0.065 Amps
Output Voltage #2:
-15Vdc
Output #2 Max Current:
0.065 Amps
Max Power:
2 Watts
Features
TRACO Power TMH 0515D miniature SIP-6 package DC/DC converter
Operating temperature: -40~+85°C
I/O isolation 1,000Vdc
High efficiency
Industry standard pinout
Short circuit protection
TRACO Power 3 year warranty
