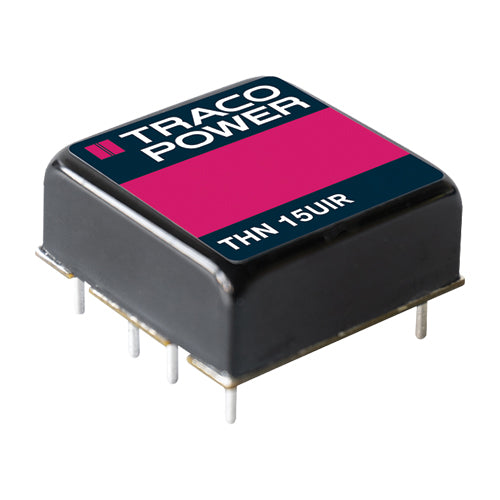

THN 15-7212UIR
1x1 DC/DC Railway Converter, Metal Package, 12:1 Input RangeManufacturer: TRACO Power
View Data Sheet
In Stock: 10 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
14~160Vdc
Output Voltage:
12Vdc
Output Max Current:
1.25 Amps
Max Power:
15 Watts
Features
15 watt, 1”x1” railway DC/DC converter
Ultra wide 12:1 input voltage range
Operating temperature: -40~+70°C without derating
Industrial safety certifications: IEC/EN/UL 62368-1
MIL-STD-810F
Compliance to EN 61373 for shock and vibration
Compliance to EN 50155 railway standard
I/O isolation 3000Vdc
Adjustable output voltage
Output voltage trim function (single output models)
Under-voltage lock out circuit
Remote On/Off
Fully regulated output
Operation up to 5000m altitude
Overvoltage category II
Protections: short circuit / over temperature / overvoltage / undervoltage-lockout
TRACO Power 3 year warranty
THN 15-7212UIR
1x1 DC/DC Railway Converter, Metal Package, 12:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
14~160Vdc
Output Voltage:
12Vdc
Output Max Current:
1.25 Amps
Max Power:
15 Watts
Features
15 watt, 1”x1” railway DC/DC converter
Ultra wide 12:1 input voltage range
Operating temperature: -40~+70°C without derating
Industrial safety certifications: IEC/EN/UL 62368-1
MIL-STD-810F
Compliance to EN 61373 for shock and vibration
Compliance to EN 50155 railway standard
I/O isolation 3000Vdc
Adjustable output voltage
Output voltage trim function (single output models)
Under-voltage lock out circuit
Remote On/Off
Fully regulated output
Operation up to 5000m altitude
Overvoltage category II
Protections: short circuit / over temperature / overvoltage / undervoltage-lockout
TRACO Power 3 year warranty
