TMDC 06-4815
24Vdc 0.25A, 24 Volt DC/DC Converter Ultra Wide 4:1 Input Range Encapsulated, Chassis MountManufacturer: TRACO Power
View Data Sheet
In Stock: 6 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
18~75Vdc
Output Voltage:
24Vdc
Output Max Current:
0.25 Amps
Max Power:
6 Watts
Features

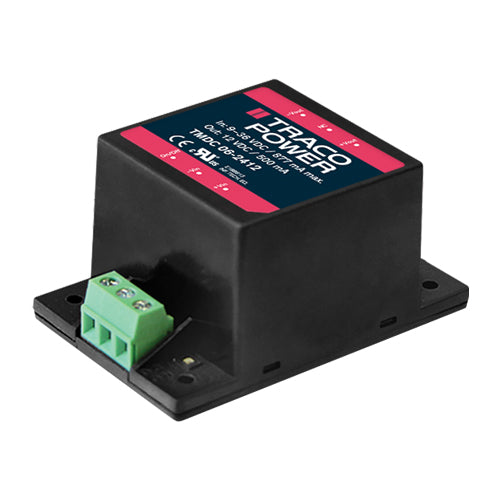

TRACO Power TMDC 06-4815 encapsulated DC/DC converter with screw terminals
Ultra wide 4:1 input voltage ranges
Operating temperature: -40~+92.5°C (no derating up to 80°C)
Safety approvals: UL/EN/IEC 62368-1
I/O isolation 3,000Vdc
Fully encapsulated low profile plastic case
Input filter to meet EN 55022, class A
No minimum load required
DC OK (LED) indicator
Remote On/Off
Protections: short circuit / over current / under voltage
TRACO Power 3 year warranty
