TMDC 06-2425
#ERROR!Manufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
9~36Vdc
Output Voltage #1:
24Vdc
Output #1 Max Current:
0.125 Amps
Output Voltage #2:
-24Vdc
Output #2 Max Current:
-0.125 Amps
Max Power:
6 Watts
Features

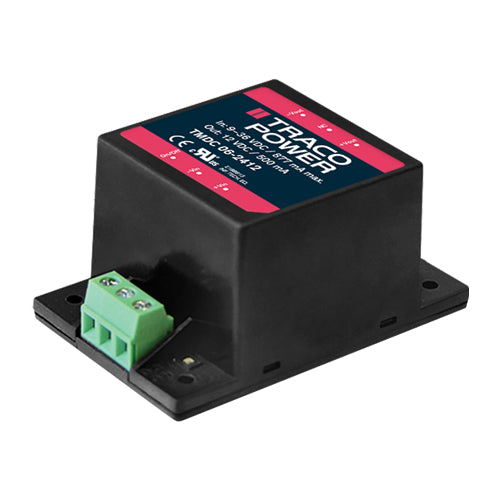

TRACO Power TMDC 06-2425 encapsulated DC/DC converter with screw terminals
Ultra wide 4:1 input voltage ranges
Operating temperature: -40~+92.5°C (no derating up to 80°C)
Safety approvals: UL/EN/IEC 62368-1
I/O isolation 3,000Vdc
Fully encapsulated low profile plastic case
Input filter to meet EN 55022, class A
No minimum load required
DC OK (LED) indicator
Remote On/Off
Protections: short circuit / over current / under voltage
TRACO Power 3 year warranty
