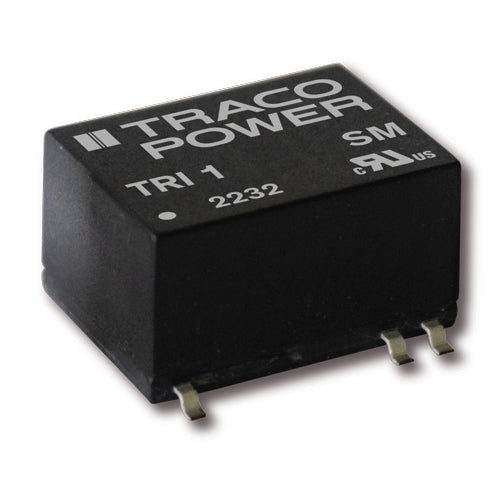

TRI 1-2422SM
12V, -12V, DC/DC Converter, SMD Package, High IsolationManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$17.50
10
$15.30
25
$14.70
100
$13.04
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
21.6~26.4Vdc
Output Voltage #1:
12Vdc
Output #1 Max Current:
0.42 Amps
Output Voltage #2:
-12Vdc
Output #2 Max Current:
-0.42 Amps
Max Power:
1 Watts
Features
SMD package industrial DC/DC converter
Input voltage range ±10% (5/12/24Vdc)
Operating temperature range: -40~+95°C (-40~+85°C without derating)
Industrial safety certification: UL 62368-1, IEC/EN 62368-1
I/O isolation: 4242Vdc (8000Vdc for 1 sec.)
EMC Radiated emissions: EN 55032 class B with internal filter
Regulated output
Operation up to 5000m altitude
Protections: continuous short circuit
TRACO Power 3 year warranty
