SMU02N-05N

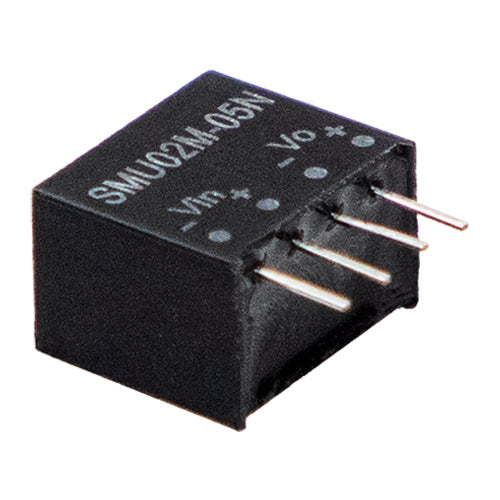

5Vdc, 0.4A SIP-4 Package DC/DC Converter, 5 Volts, 0.4 Amps, Input Voltage: 21.6-26.4VdcManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$4.00
10
$3.95
25
$3.90
50
$3.85
100
$3.75
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
21.6~26.4Vdc
Output Voltage:
5Vdc
Output Max Current:
0.4 Amps
Max Power:
2 Watts
Features
SIP4 package DC/DC converter
Input voltage range: 21.6~26.4Vdc
Operating temperature range: -40~+105°C
I/O isolation: 1,500Vdc
Comply to BS EN/EN55032 radiated Class B without additional external components
Protections: short circuit (continuous)
MEAN WELL 3 year warranty
SMU02N-05N
5Vdc, 0.4A SIP-4 Package DC/DC Converter, 5 Volts, 0.4 Amps, Input Voltage: 21.6-26.4VdcManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
21.6~26.4Vdc
Output Voltage:
5Vdc
Output Max Current:
0.4 Amps
Max Power:
2 Watts
Features
SIP4 package DC/DC converter
Input voltage range: 21.6~26.4Vdc
Operating temperature range: -40~+105°C
I/O isolation: 1,500Vdc
Comply to BS EN/EN55032 radiated Class B without additional external components
Protections: short circuit (continuous)
MEAN WELL 3 year warranty
