TEP 200-2415WIR

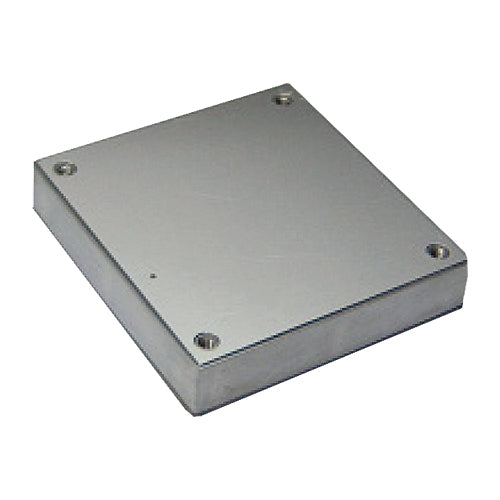

24Vdc 7.5A, DC/DC Converter Half Brick, Railway Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$369.49
5
$335.83
10
$308.22
25
$284.27
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
9~36Vdc
Output Voltage:
24Vdc
Output Max Current:
7.5 Amps
Max Power:
180 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TEP 200-2415WIR high performance compact & rugged package DC/DC converter
Ultra wide 4:1 input voltage range
Operating temperature: -40~+75°C
EN 50155 approval for demanding applications such as railway and transportation
Chassis mount with screw terminal block and EMI filter to meet EN 55022, class A
Adjustable output voltage +10/-20%
Under voltage lockout circuit
Reverse input voltage protection
Soft start
Remote On/Off
Sense line
Protections: short circuit / over temperature / over voltage
TRACO Power 3 year warranty
