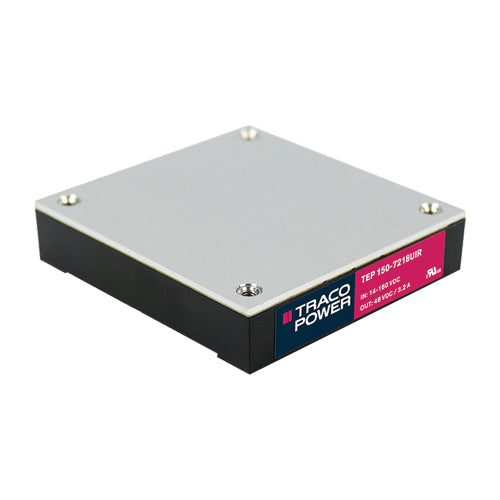

TEP 150-7212UIR
12Vdc 12.5A, DC/DC Converter Half Brick, EN 50155 Railway Wide 12:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$231.19
10
$187.49
25
$182.63
50
$177.49
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
14~160Vdc
Output Voltage:
12Vdc
Output Max Current:
12.5 Amps
Max Power:
150 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TEP 150-7212UIR 1/2 brick PCB Mount railway DC/DC converter
Ultra-wide 12:1 input range (14~160Vdc)
Operating temperature: -40~+50°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
I/O isolation: 3000Vac
MIL-STD-810F
Compliance to EN 50155 railway standard
Compliance to IEC 61373 for shock & vibration
Input filter meets EN 55032 class A (with external filter)
Adjustable output voltage +10/-20%
Under voltage lockout circuit
Remote On/Off
Remote sense function
Operation up to 5000m altitude
Optinal heat sinks: TEP-HS6 or TEP-HS7
Protections: short circuit / over temperature / overvoltage
TRACO Power 3 year warranty
