Power Worth Searching For
PM150-14A
24 Volt DC Power Supply Medical & ITE Approvals 2"x4" Open FrameManufacturer: Protek Power
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$107.76
15
$98.78
25
$84.70
100
$76.70
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
6.25 Amps
Max Power:
150 Watts
Features

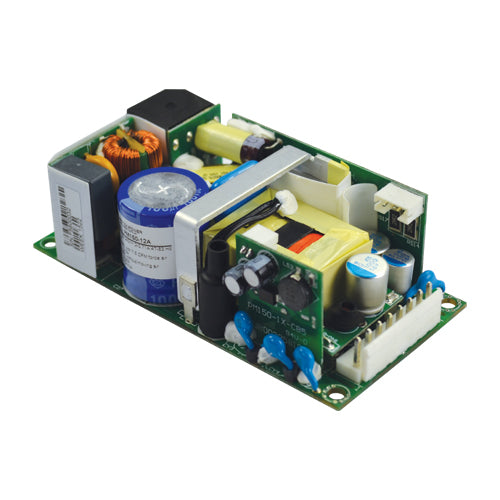

Protek Power PM150-14A open frame, low profile medical & ITE power supply
AC input: 80~264Vac
Operating temperature: 0~+70°C
Medical UL ES60601-1 and ITE UL60950-1 approvals
BF class insulation
Leakage current < 275 µA
Built-in active PFC function (0.98 typical)
Compact open frame size: 2 x 4 with 1.3 inches low profile
Power fail detection (PFD) signal (optional)
Short circuit protection
Protek Power 1 year warranty
