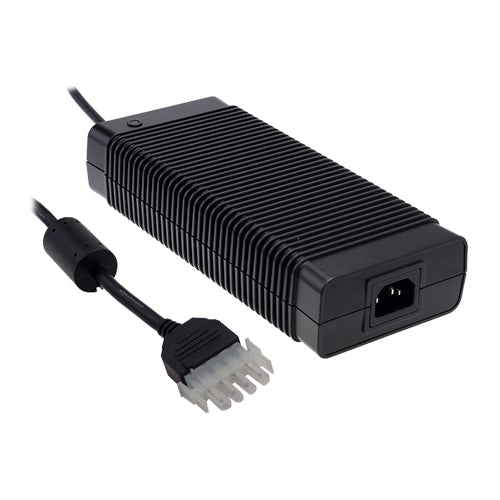

GC330A36-C4P

40.8 Volt Battery Charger, 2 Stage Charging,20~65Ah, Lead Acid and Li-Ion Battery Charger, 40.8V6.4~8A; 16AWG/100cm,4PIN CON.

Manufacturer: MEAN WELL

View Data Sheet

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

*The import tariff is included in the unit price

Quantity
Unit Price
1
$99.48
5
$94.76
10
$90.51
20
$87.86

Specifications

Input Voltage:

90~264Vac

Output Charge Voltage:

40.8Vdc

Max Charge Current:

6.4 Amps

Max Power:

326.4 Watts

Features

Desktop battery charger, 2 Stage Charging, AC Inlet: IEC 320-C14, PFC

AC input range: 90~264Vac

Operating temperature range: -30~+60°C

Safety approvals: UL 62368-1 listed

2 stage charging capability

Built-in PFC

No load power consumption <1W

2 color LED indicator for charging status

Ability to charge lead acid and Li-ion batteries

AC inlet: IEC 320-C14

DC plug type: C4P

Peak Power Available for faster charging.

Protections: short circuit / overvoltage / over temperature

MEAN WELL 2 year warranty

GC330A36-C4P

GC330A36-C4P

40.8 Volt Battery Charger, 2 Stage Charging,20~65Ah, Lead Acid and Li-Ion Battery Charger, 40.8V6.4~8A; 16AWG/100cm,4PIN CON.

Manufacturer: MEAN WELL

View Data Sheet

Specifications

Input Voltage:

90~264Vac

Output Charge Voltage:

40.8Vdc

Max Charge Current:

6.4 Amps

Max Power:

326.4 Watts

Features

Desktop battery charger, 2 Stage Charging, AC Inlet: IEC 320-C14, PFC

AC input range: 90~264Vac

Operating temperature range: -30~+60°C

Safety approvals: UL 62368-1 listed

2 stage charging capability

Built-in PFC

No load power consumption <1W

2 color LED indicator for charging status

Ability to charge lead acid and Li-ion batteries

AC inlet: IEC 320-C14

DC plug type: C4P

Peak Power Available for faster charging.

Protections: short circuit / overvoltage / over temperature

MEAN WELL 2 year warranty

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

*The import tariff is included in the unit price

Quantity
Unit Price
1
$99.48
5
$94.76
10
$90.51
20
$87.86
