GCS350PS15
15Vdc 23.4A, 15V Open Frame Power Supply, Medical and ITE Cerifications, 15 Volts 23.4 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$192.83
5
$187.04
10
$181.26
25
$173.54
100
$161.98
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
15Vdc
Output Max Current:
23.4 Amps
Max Power:
350 Watts
Known Country of Origin:
Vietnam
Features

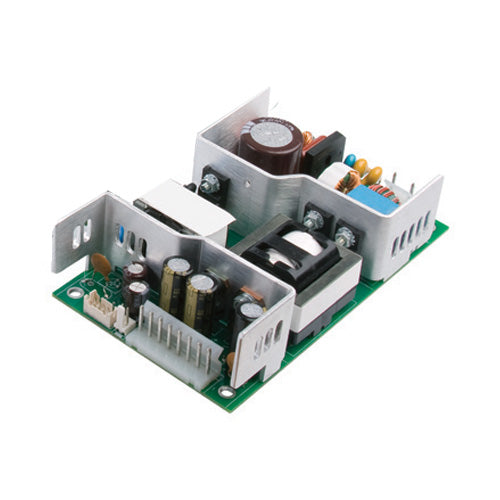

XP Power GCS350PS15 3x5 inches open frame medical and ITE power supply
AC input range: 85~264Vac
Operating temperature range: -40~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC 60950-1, IEC/EN 62368-1, UL 62368-1
Low leakage current ≤250µA
Class I and class II prepared
Remote sense function
Built-in PFC
Remote On/Off
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
