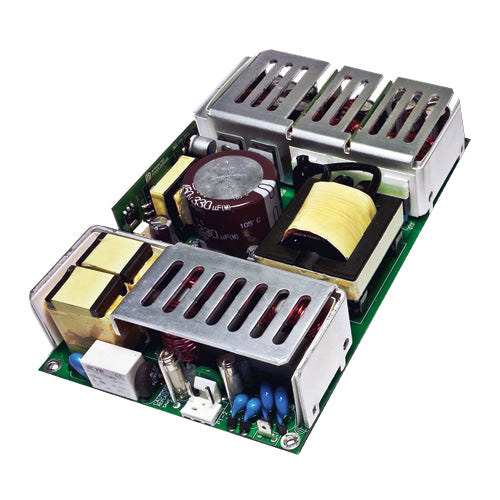

NXT-400M-3001-03
Triple Output Power Supply , Medical & ITE Safety Approvals, Open FrameManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$334.15
3
$324.18
10
$319.41
25
$291.13
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
50 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
10 Amps
Output Voltage #3:
-15Vdc
Output #3 Max Current:
5 Amps
Max Power:
400 Watts
Features
IPD NXT-400M-3001-03 multiple output open frame power supply
AC input voltage range: 85~264Vac
Operating temperature range: -20~+70°C
IEC 60601-1 3rd ed. Medical Certification
IEC 60950-1 ITE Certification
IEC 62368-1 Certification
IEC 60601-1-2 4th ed. EMC
2 x MOPP - (means of patient protection - primary to secondary)
<300µA earth leakage current
Factory configurable output voltage combinations
All DC output voltages are regulated and adjustable
Built-in active PFC
High efficiency
No load input power: <300mW
Compact size: 4x7x1.5
Max power ratings achieved by providing 300LFM of forced air cooling
Remote sense, Floating or common output returns
Optional remote inhibit/enable
Optional standby output: 5V/2A, Optional power fail warning
