NXT-400M-2004-01

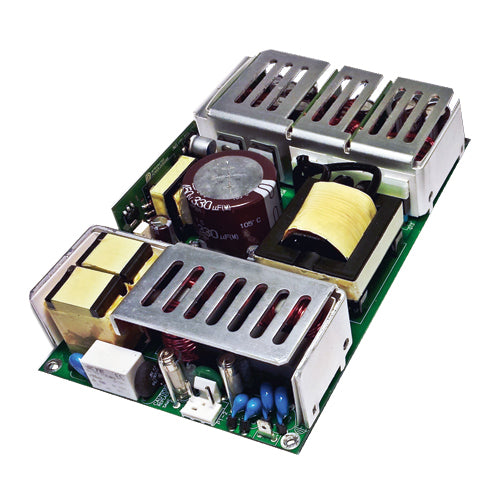

Dual Output Power Supply , Medical & ITE Safety Approvals, Open FrameManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$344.37
3
$334.09
10
$329.18
25
$305.62
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
15Vdc
Output #1 Max Current:
20 Amps
Output Voltage #2:
-12Vdc
Output #2 Max Current:
10 Amps
Max Power:
400 Watts
Known Country of Origin:
USA
Features
IPD NXT-400M-2004-01 multiple output open frame power supply
Factory configurable output voltage combinations
AC input voltage range: 85~264Vac
Operating temperature range: -20~+70°C
All DC output voltages are regulated and adjustable
Built-in active PFC
High efficiency
No load input power: <300mW
<300µA earth leakage current
IEC 60601-1 3rd ed. Medical Certification
IEC 60950-1 ITE Certification
IEC 62368-1 Certification
IEC 60601-1-2 4th ed. EMC
2 x MOPP - Means of Patient Protection (primary to secondary)
Compact size: 4x7x1.5"
Max power ratings achieved by providing 300LFM of forced air cooling
Remote sense
Available with optional chassis and cover
Floating or common output returns, optional remote inhibit/enable, standby output: 5V/2A
