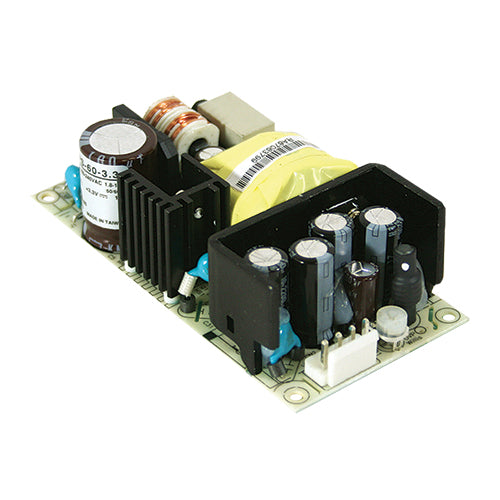

RPS-60-24
24Vdc 2.5A 24Vdc Medical Power Supply 2"x4" Open Frame 24V 2.5AManufacturer: MEAN WELL
View Data Sheet
In Stock: 17 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
2.5 Amps
Max Power:
60 Watts
Features
AC input range: 90~264Vac
Operating temperature: -20~+70°C
Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1
2xMOPP (means of patient protection)
Suitable for BF applications with appropriate system consideration
EMI Class B for Class I (with FG) configuration
ITE safety approval: UL60950-1/IEC60950-1/EN60950-1 ITE
Low leakage current <130µA
No load power consumption <0.75W
Protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
