MFM-20-3.3

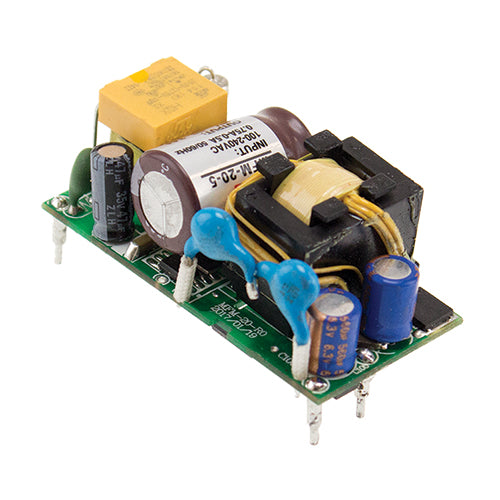

3.3Vdc 4.5A Medical Power Supply PCB Mount, Open FrameManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
3.3Vdc
Output Max Current:
4.5 Amps
Output Peak Current:
4.95 Amps
Max Power:
14 Watts
Features
AC input range: 80~264Vac
Operating temperature: -35~+85°C (with derating)
Medical safety approvals: UL ANSI/AAMI ES 60601-1 & IEC/EN 60601-1
2xMOPP
Extremely low leakage current <80µA
Suitable for BF applications
Peak current capability
Low no load power consumption <0.09W
Class II double insulation (No FG)
Withstands 5G vibration
Compact size: 1.93x0.94 inches
Protections: short circuit /over load / over voltage / over temperature
MEAN WELL 3 year warranty
