Power Worth Searching For
UHP-200-48

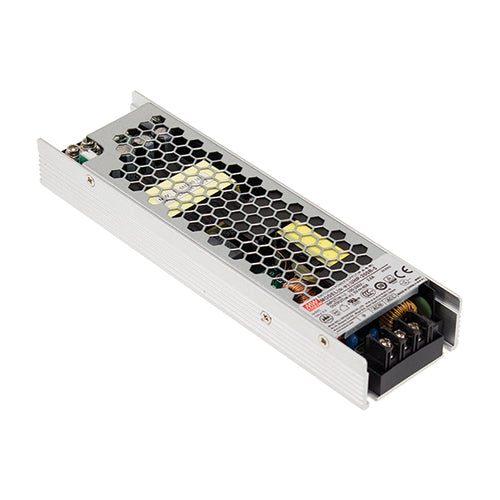

48Vdc ITE Power Supply Enclosed, Low Profile 48V 4.2A, 200 WattsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
48Vdc
Output Max Current:
4.2 Amps
Output Peak Current:
6.3 Amps
Max Power:
201 Watts
Features
AC input range: 90~264Vac
Operating temperature: -30~+70°C
Safety approvals: TUV EN 62368-1, UL 62368-1
Withstand 300Vac surge input for 5 seconds
Built-in active PFC function
Low profile/slim design: 26mm
LED indicator for power On
Withstand 5G anti-vibration
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
