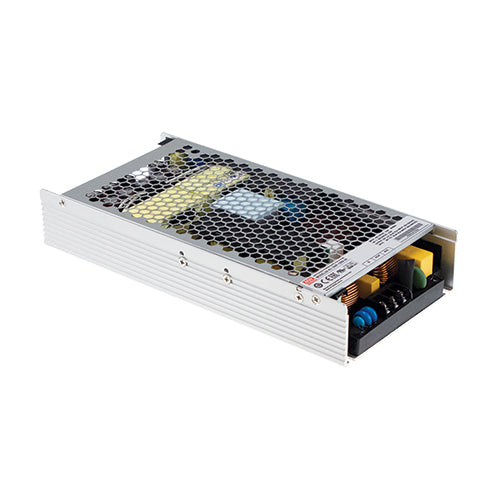

UHP-1000-48
48Vdc 21A, 48Vdc PFC Power Supply Fan-less, Convection Cooled 48V 21A 1008W, 1000 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 12 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$256.50
5
$244.40
10
$233.60
20
$226.80
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
48Vdc
Output Max Current:
21 Amps
Max Power:
1008 Watts
Features
AC input range: 90~264Vac
Operating temperature: -30~+70°C (with derating)
Safety approvals: UL/EN 62368-1
Withstands 300Vac surge input for 5 seconds
Built-in PFC
Programmable output voltage and constant current level
Auxiliary output: 12V @ 0.5A
Low profile/slim design: 41mm
Built-in remote ON/OFF
LED indicator for power On
DC OK signal
High efficiency
Withstands 5G anti-vibration
Operating altitude up to 5,000 meters
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 5 year warranty
