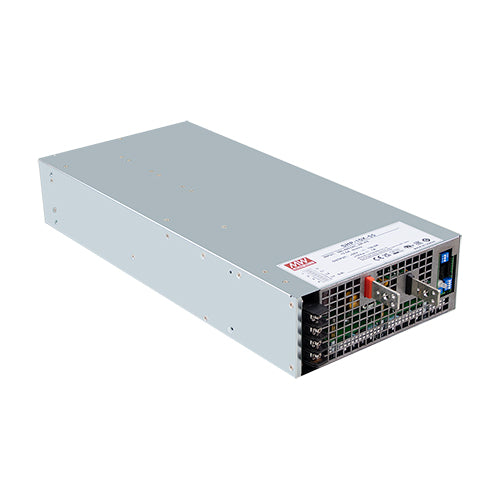

SHP-10K-230
230Vdc 43.5A, 10,000W Power Supply High Voltage, Air Cooled 230V 43.5A, 10kWattsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$2,850.00
5
$2,715.00
10
$2,595.00
20
$2,520.00
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
340~530Vac Three Phase
Output Voltage:
230Vdc
Output Max Current:
43.5 Amps
Max Power:
10000 Watts
Features
AC input range: 3 Phase 3-wire Δ or 3 Phase 3-wire Y 340~530Vac
Operating temperature range: -30~+70°C
Industrial safety certification: EN 62368-1, UL 62368-1
Built-in active PFC
Water cooled (L) or forced air cooling versions
Current sharing up to 4 SHP-10K units
3+1 parallel operation (up to 4 units can be connected in parallel)
Forced air cooling by two built-in DC fans
Built-in remote On/Off
DC OK signal
High efficiency
Built-in 12V/1A auxiliary output - Only for Remote On/Off control (Auxiliary voltage output is not controlled by the Remote On/Off function)
Output voltage can be trimmed between 50~120% of the rated output voltage
Output constant current can be trimmed between 20~100% of the rated output current
Alarm signal output via relay contact
Protections: short circuit / overload / overvoltage / over temperature / fan failure
MEAN WELL 5 year warranty
