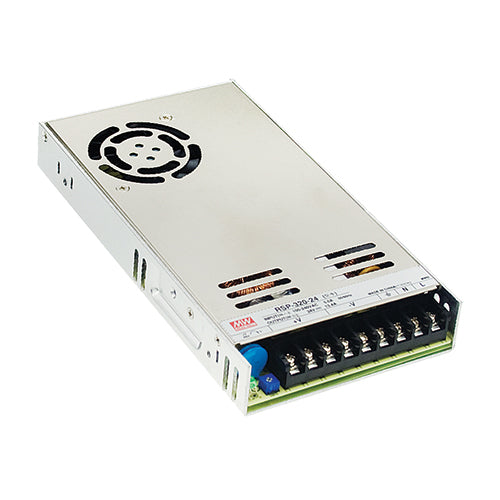

RSP-320-15
15Vdc 21.4A, 15Volts Switching Power Supply PFC, Low Profile 15V 21.4A, 320 WattsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
88~264Vac
Output Voltage:
15Vdc
Output Max Current:
21.4 Amps
Max Power:
321 Watts
Features
Universal AC input range: 88~264Vac
Operating temperature range: -30~+70°C
Safety standard: UL62368-1
Forced air cooling by built-in DC fan with fan speed control function
30mm low profile design for 1U installation
LED indicator for power on
Optional conformal coating model available
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
RSP-320-15
15Vdc 21.4A, 15Volts Switching Power Supply PFC, Low Profile 15V 21.4A, 320 WattsManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
88~264Vac
Output Voltage:
15Vdc
Output Max Current:
21.4 Amps
Max Power:
321 Watts
Features
Universal AC input range: 88~264Vac
Operating temperature range: -30~+70°C
Safety standard: UL62368-1
Forced air cooling by built-in DC fan with fan speed control function
30mm low profile design for 1U installation
LED indicator for power on
Optional conformal coating model available
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
