Power Worth Searching For

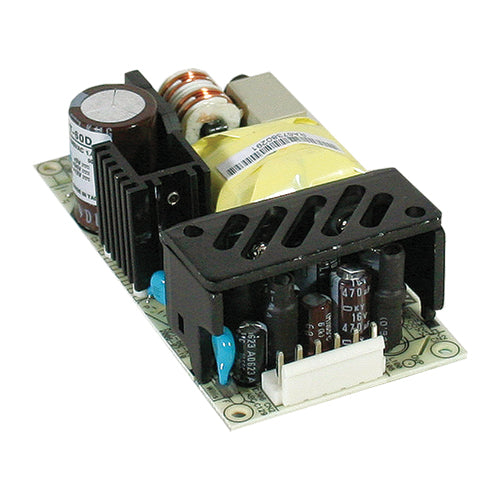

RPT-60A
5V4A +12V2A -5V0.5A Medical Power Supply Triple Output 2"x4" Open FrameManufacturer: MEAN WELL
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
4 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
2 Amps
Output Voltage #3:
-5Vdc
Output #3 Max Current:
0.5 Amps
Max Power:
46 Watts
Features
AC input range: 90~264Vac
Operating temperature: -20~+65°C
Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1
2xMOPP (means of patient protection)
ITE safety approval: UL60950-1/IEC60950-1/EN60950-1 ITE
Low leakage current <100µA
Protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
