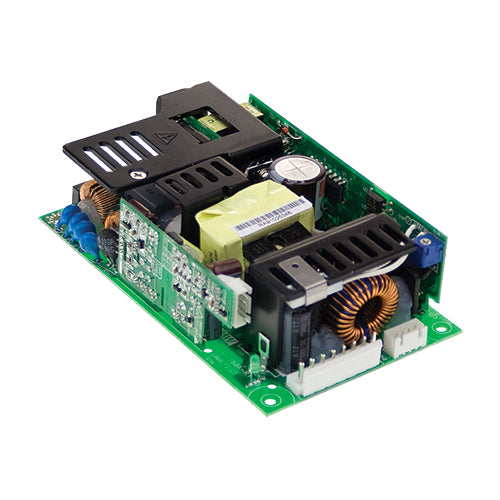

RPT-160C
5V14A 15V3.6A -15V1A Medical Power Supply Triple Output 3"x5" Open FrameManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
9 Amps
Output Voltage #2:
15Vdc
Output #2 Max Current:
3.6 Amps
Output Voltage #3:
-15Vdc
Output #3 Max Current:
1 Amps
Max Power:
143 Watts
Features
AC input range: 90~264Vac
Operating temperature: -20~+70°C
Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1
2xMOPP (means of patient protection)
Built-in PFC
Power good and power fail signal
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
