Power Worth Searching For
RPS-500-36-TF

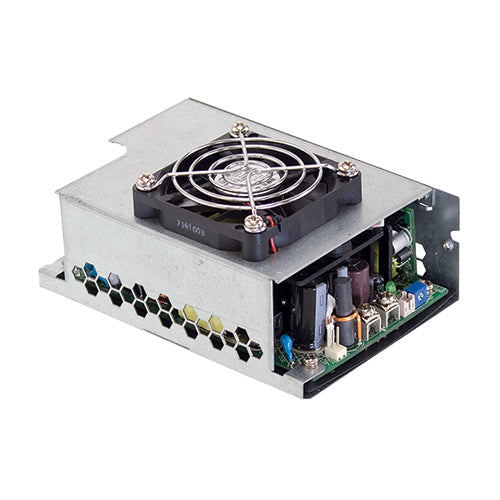

36Vdc 13.9A 500W Medical Power Supply Enclosed Type with Top Fan 36V, 13.9AManufacturer: MEAN WELL
View Data Sheet
In Stock: 21 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$126.73
5
$120.75
10
$115.35
20
$112.01
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
36Vdc
Output Max Current:
13.9 Amps
Max Power:
500 Watts
Features
AC input range: 80~264Vac
Operating temperature: -30~+70°C (with derating)
Safety approvals: ANSI/AAMI ES60601-1, EN/IEC60601-1
2xMOPP, BF rated
EMI Class B for Class I (with FG) and Class A for Class II (without FG)
Built-in PFC
Low leakage current <220µA
Built-in 5Vdc standby output
No load power consumption <0.5W by PS-ON control
LED indicator for power on
Peak power 550W (3 seconds)
Power good/fail signals
Remote sense function
High efficiency
Protections: short circuit / overload / over voltage / over temperature
MEAN WELL 3 year warranty
