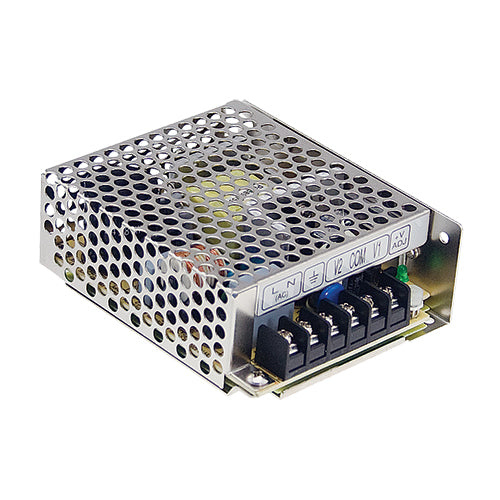

RD-35A
5V 4A +12V 1A Dual Output Power SupplyManufacturer: MEAN WELL
View Data Sheet
In Stock: 234 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
88~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
4 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
1 Amps
Max Power:
32 Watts
Features
AC input range: 88~264Vac
High operating temperature range: -25~+70°C
Safety standard: UL62368-1
Cooling by free air convection
Withstand 300Vac surge input for 5 seconds
Withstand G5 vibration test
LED indicator for power on
High reliability: 105°C long life electrolytic capacitors
Standard protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
