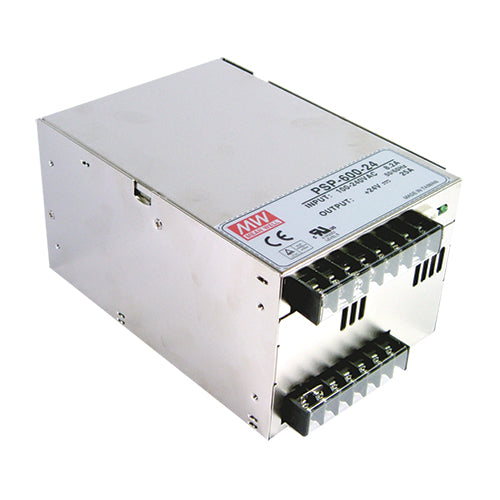

PSP-600-13.5
13.5Vdc 44.5A, 13.5Vdc PFC Power Supply Parallel Function 13.5Volts 44.5A, 600 WattsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$142.50
5
$135.80
10
$129.80
20
$126.00
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
88~264Vac
Output Voltage:
13.5Vdc
Output Max Current:
44.5 Amps
Max Power:
600 Watts
Features
AC input range: 88~264vac
Built-in active PFC
Operating temperature: -20~+60°C
Industrial safety certification: TUV EN 62368-1, UL 62368-1
Current sharing capability, operate in parallel, (3+1), up to 4 PSP-600-13.5 (2400W)
Built-in DC OK signal, remote ON/OFF and remote sense function
Dim: 170mmx120mmx93mm Weight: 1.8kgs/piece
Standard Protections: short circuit / over load / over voltage / over temperature
Mean Well 3 year warranty
