Power Worth Searching For

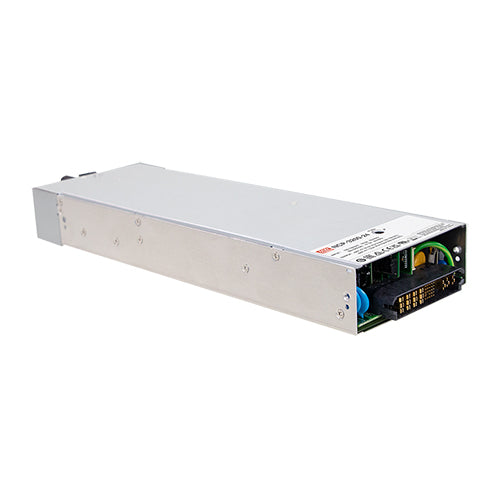

NCP-3200-380
380Vdc 8.4A Rack Mountable Power Supply, Built-in OR-ing, PMBus, Hot SwapManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$673.24
5
$654.79
10
$628.95
20
$612.82
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
380Vdc
Output Max Current:
8.4 Amps
Max Power:
3206.4 Watts
Features
3200W enclosed power supply with battery charger function and PMBus
AC input range: 90~264Vac
Operating temperature range: -30~+70°C
Industrial safety certification: UL 62368-1, IEC/EN 62368-1
Built-in 2/3 stage charging curves and programmable curve (24V/48V models)
Built-in OR-ing FET/Diode
Built-in PFC
Hot swappable
PMBus support
Built-in DC fans with intelligent speed control
Built-in remote On/Off, Remote Sense
LED indicator for power On
Built-in 5V/0.3A and 12V/0.8A auxiliary outpu
DC OK and AC OK signals
Active current sharing up to 10 rack shelves with (DHP-1UT-B)
Parallel operation up to 40 units
Output voltage and constant current level programmable
Protections: short circuit / overload / overvoltage / over temperature
MEAN WELL 5 year warranty
NCP-3200-380
380Vdc 8.4A Rack Mountable Power Supply, Built-in OR-ing, PMBus, Hot SwapManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
380Vdc
Output Max Current:
8.4 Amps
Max Power:
3206.4 Watts
Features
3200W enclosed power supply with battery charger function and PMBus
AC input range: 90~264Vac
Operating temperature range: -30~+70°C
Industrial safety certification: UL 62368-1, IEC/EN 62368-1
Built-in 2/3 stage charging curves and programmable curve (24V/48V models)
Built-in OR-ing FET/Diode
Built-in PFC
Hot swappable
PMBus support
Built-in DC fans with intelligent speed control
Built-in remote On/Off, Remote Sense
LED indicator for power On
Built-in 5V/0.3A and 12V/0.8A auxiliary outpu
DC OK and AC OK signals
Active current sharing up to 10 rack shelves with (DHP-1UT-B)
Parallel operation up to 40 units
Output voltage and constant current level programmable
Protections: short circuit / overload / overvoltage / over temperature
MEAN WELL 5 year warranty
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$673.24
5
$654.79
10
$628.95
20
$612.82
REQUEST a QUOTE for higher qty discounts
