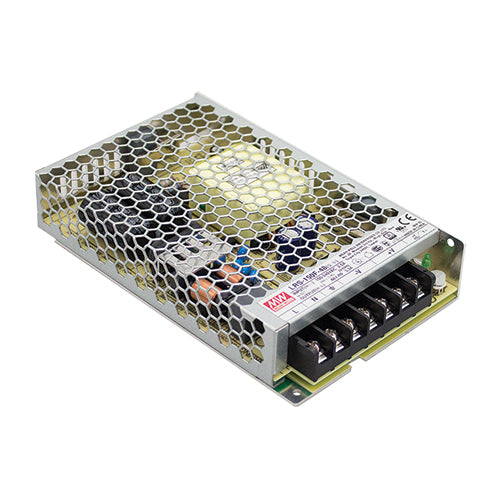

LRS-150F-15
15Vdc 10A, Power SupplyManufacturer: MEAN WELL
View Data Sheet
In Stock: 105 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
15Vdc
Output Max Current:
10 Amps
Max Power:
150 Watts
Features
AC input: 85~264Vac
Working temperature: -30~+70°C
Safety standard: UL62368-1
IEC/EN61558-1,-2-16; IEC-EN60335-1; EN55022; EN55014
Withstand 300Vac surge input for 5 seconds
High efficiency
No load power consumption: <0.5W
Cooling: free air convection
Withstand 5G vibration test
Operation up to 5,000 meters
LED indicator for power on
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
