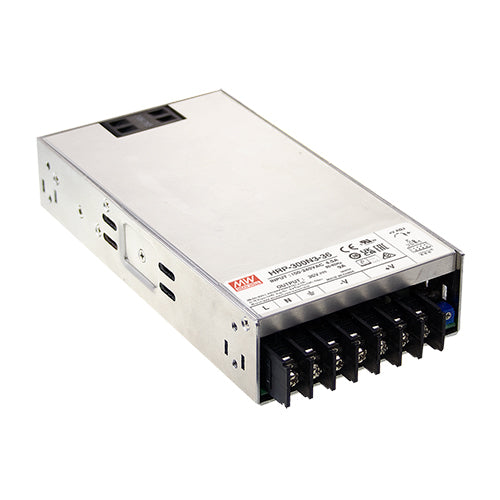

HRP-300N3-12
12Vdc 27A Power Supply 350% Peak Power, PFCManufacturer: MEAN WELL
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
27 Amps
Max Power:
324 Watts
Features
AC input range: 85~264Vac
Operating temperature range: -40~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
EN55032 Class B conducted and radiated emissions
Withstands 300Vac surge input for 5 seconds
Peak power 350% for 5 seconds
Built-in PFC
Built-in fan with on-off control
LED indicator for power On
DC OK signal
Remote sense function
Adjustable output voltage
Operation up to 5000m altitude
Built-in constant current limiting circuit
Low profile fits 1U applications
Withstands 5G vibration
Protections: short circuit / overvoltage / overload / over temperature
MEAN WELL 5 year warranty
HRP-300N3-12
12Vdc 27A Power Supply 350% Peak Power, PFCManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
27 Amps
Max Power:
324 Watts
Features
AC input range: 85~264Vac
Operating temperature range: -40~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
EN55032 Class B conducted and radiated emissions
Withstands 300Vac surge input for 5 seconds
Peak power 350% for 5 seconds
Built-in PFC
Built-in fan with on-off control
LED indicator for power On
DC OK signal
Remote sense function
Adjustable output voltage
Operation up to 5000m altitude
Built-in constant current limiting circuit
Low profile fits 1U applications
Withstands 5G vibration
Protections: short circuit / overvoltage / overload / over temperature
MEAN WELL 5 year warranty
