Power Worth Searching For
EPP-500-12

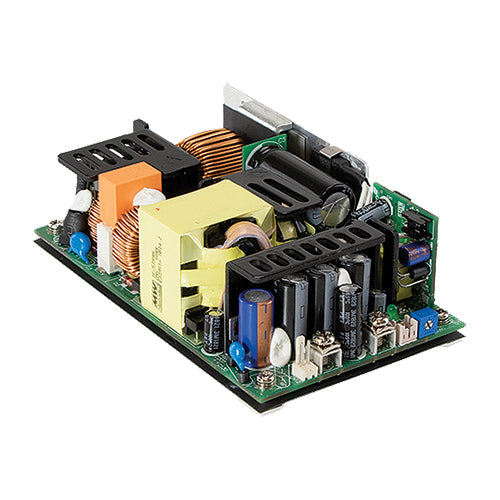

12Vdc 41.6A 12Vdc 3x5 Power Supply Open Frame 12V 41.6A 499.2WManufacturer: MEAN WELL
View Data Sheet
In Stock: 10 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
12Vdc
Output Max Current:
41.6 Amps
Max Power:
499 Watts
Features
AC input Range: 80~264Vac
Working temperature range: -30~+70°C (with derating)
Safety approvals: UL/IEC/EN 62368-1 and TUV 62368-1
Meets EMI for both Class I (Class B) & Class II (Class A) configurations
Built-in active PFC function
High efficiency
Low no load power consumption <0.5W
Cooling by free air convection: 320W; cooling with 25CFM forced air: 500W
550W peak power up to 3 seconds
Built in 12V/0.5A auxiliary output for fan supply
Standby 5V/1A with fan (0.6A without fan)
Built-in remote sense function
LED indicator for power on
Power Good/Fail signals
Operating altitude up to 5000m
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
EPP-500-12
12Vdc 41.6A 12Vdc 3x5 Power Supply Open Frame 12V 41.6A 499.2WManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
12Vdc
Output Max Current:
41.6 Amps
Max Power:
499 Watts
Features
AC input Range: 80~264Vac
Working temperature range: -30~+70°C (with derating)
Safety approvals: UL/IEC/EN 62368-1 and TUV 62368-1
Meets EMI for both Class I (Class B) & Class II (Class A) configurations
Built-in active PFC function
High efficiency
Low no load power consumption <0.5W
Cooling by free air convection: 320W; cooling with 25CFM forced air: 500W
550W peak power up to 3 seconds
Built in 12V/0.5A auxiliary output for fan supply
Standby 5V/1A with fan (0.6A without fan)
Built-in remote sense function
LED indicator for power on
Power Good/Fail signals
Operating altitude up to 5000m
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
