EPP-400-12

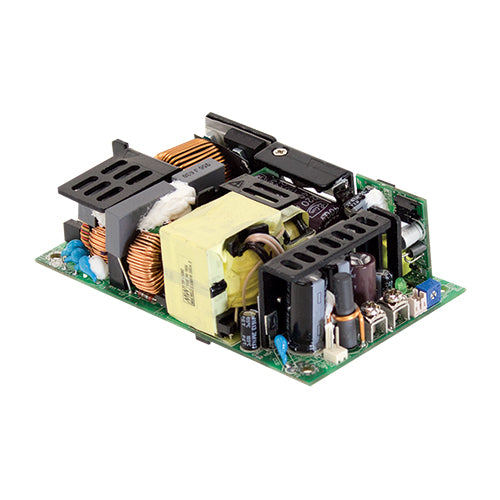

12Vdc 33.3A 12Vdc AC/DC Power Supply Open Frame, PFC, 3x5 12V 33.3AManufacturer: MEAN WELL
View Data Sheet
In Stock: 3 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
12Vdc
Output Max Current:
33.3 Amps
Max Power:
400 Watts
Features
Universal AC input: 80~264Vac
Working temperature range: -30~+70°C
Safety standard: UL62368-1
EMI Class B for Class I & Class A for Class II configuration
Built-in active PFC function
High efficiency
Low no load power consumption <0.5W
Compact size: 3x5"
Cooling by free air convection: 250W; cooling with 25CFM forced air: 400W
Built in 12V/0.5A auxiliary output
Standby 5V@1A with fan (0.6A without fan)
Built-in remote sense function
LED indicator for power on
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
