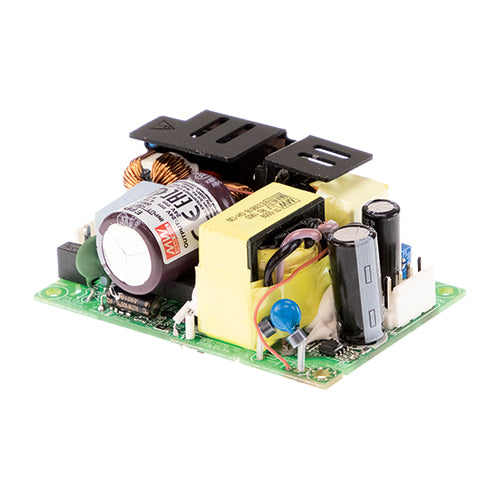

EPP-120S-27
27Vdc 4.44A 27Vdc 2x3 Power Supply 27V 4.44AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
27Vdc
Output Max Current:
4.44 Amps
Max Power:
119 Watts
Features
AC input Range: 80~264Vac
Working temperature range: -30~+85°C (with derating)
Safety approvals: UL/EN/IEC 62368-1
EMI Class B for Class I (with FG) and Class A for Class II (without FG)
Built-in active PFC function
High efficiency
Low no load power consumption <0.3W
150W peak power up to 10 seconds
Operating altitude up to 5000m
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
EPP-120S-27
27Vdc 4.44A 27Vdc 2x3 Power Supply 27V 4.44AManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
27Vdc
Output Max Current:
4.44 Amps
Max Power:
119 Watts
Features
AC input Range: 80~264Vac
Working temperature range: -30~+85°C (with derating)
Safety approvals: UL/EN/IEC 62368-1
EMI Class B for Class I (with FG) and Class A for Class II (without FG)
Built-in active PFC function
High efficiency
Low no load power consumption <0.3W
150W peak power up to 10 seconds
Operating altitude up to 5000m
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
