DRP-3200-24

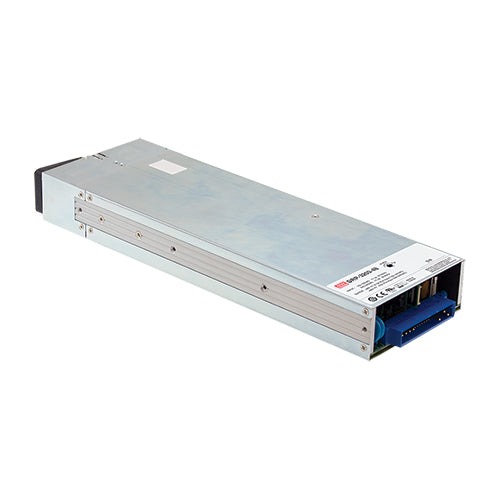

24Vdc 133A 24V Hot Swappable Power Supply Built-in OR-ing, I2C, PMBus 24V 133AmpsManufacturer: MEAN WELL
View Data Sheet
In Stock: 27 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
133 Amps
Max Power:
3192 Watts
Features
AC input range: 90~264Vac (low line de-rating)
Operating temperature range: -30~+70°C
Safety approvals: UL 62368-1 & TUV EN 62368-1
Current sharing operate in parallel up to 4 units: 12,800W for one 19 inch rack shelf
Programmable output voltage and output current
Built-in PFC
High Efficiency
1U low profile design
DC OK signal, temperature alarm
Remote On/Off, remote sense & auxiliary outputs 5V @0.3A, 12V @0.8A
Built-in OR-ing FET & hot swappable support
Built-in I2C interface, support PMBus protocol (optional CANBus protocol)
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 5 year warranty
