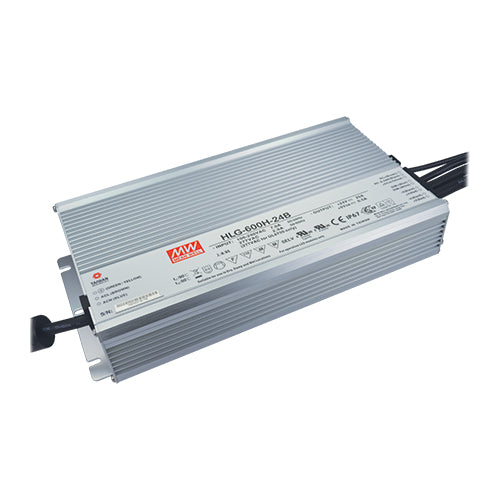

HLG-600H-15A
15Vdc 36A 15V LED Driver IP65, PFC 15V 36AmpsManufacturer: MEAN WELL
View Data Sheet
In Stock: 11 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$205.20
5
$195.50
10
$186.80
20
$181.40
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~305Vac
Output Voltage (CV mode):
15Vdc
Output Max Current (CV mode):
36 Amps
Output Current (CC mode):
36 Amps
Constant Current Operating Range:
7.5~15Vdc
Max Power:
540 Watts
Features
Full range AC input: 90~305Vac
Operating case temperature: -40~+90°C
Safety approval: UL60950-1
UL8750 type HL LED power supply
Meet 4kV surge immunity level (IEC61000-4-5)
Built-in active PFC
IP65 durable aluminium enclosure
High efficiency
Output voltage and constant current level can be adjusted through internal potentiometers
Protections: short circuit / over current / over voltage / over temperature
Applications: LED electric display, lighting, LED street lighting and indoor/outdoor lighting
MEAN WELL 7 year warranty
