Power Worth Searching For
NTU-1700-112US

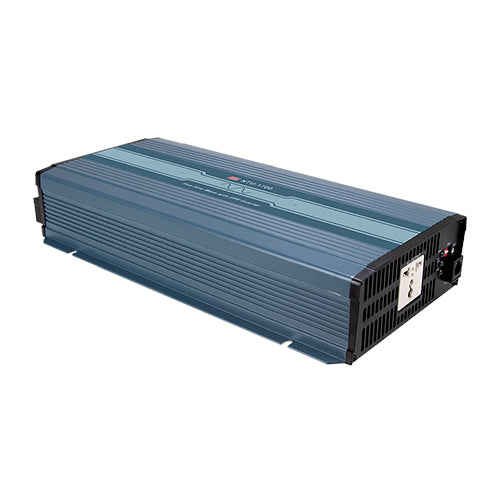

12Vdc 150A DC/AC Inverter AC Output Receptacle: US Plug, UPS Function, 110VacManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$491.67
3
$464.73
10
$446.38
20
$434.94
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
10~16.5Vdc
Output Voltage:
110VAC (100/110/115/120)
Max Power:
1700 Watts
Features
True sine wave output (THD<3%)
Operating temperature range: -25~+70°C
Safety certification: UL458 (for 112/124 type GFCI only)
High surge output power up to 3400W
Built-in UPS function (AC by-pass)
Built-in temperature controlled fan
Built-in remote On/Off control
Front panel indicator for: operation status
North American AC receptacle standard (Type-US)
North American AC receptacle optional (Type-GFCI)
Conformal coated
AC output voltage is factory preset at 110Vac (100 / 110 / 115 / 120Vac user selectable by DIP Switch)
Input protections: reverse polarity / DC low/high alarm / DC low/high shutdown / overvoltage
Output protections: short circuit / overload / over temperature
MEAN WELL3 year warranty
NTU-1700-112US
12Vdc 150A DC/AC Inverter AC Output Receptacle: US Plug, UPS Function, 110VacManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
10~16.5Vdc
Output Voltage:
110VAC (100/110/115/120)
Max Power:
1700 Watts
Features
True sine wave output (THD<3%)
Operating temperature range: -25~+70°C
Safety certification: UL458 (for 112/124 type GFCI only)
High surge output power up to 3400W
Built-in UPS function (AC by-pass)
Built-in temperature controlled fan
Built-in remote On/Off control
Front panel indicator for: operation status
North American AC receptacle standard (Type-US)
North American AC receptacle optional (Type-GFCI)
Conformal coated
AC output voltage is factory preset at 110Vac (100 / 110 / 115 / 120Vac user selectable by DIP Switch)
Input protections: reverse polarity / DC low/high alarm / DC low/high shutdown / overvoltage
Output protections: short circuit / overload / over temperature
MEAN WELL3 year warranty
