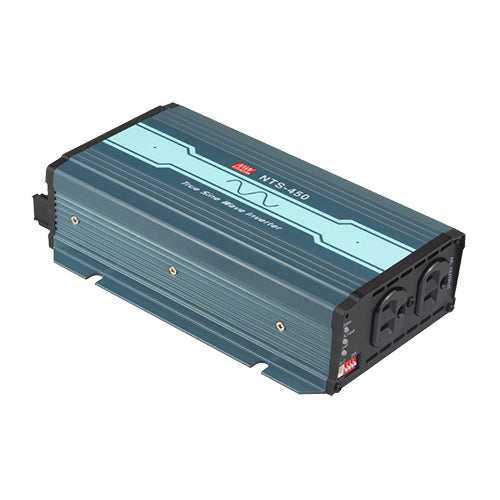

NTS-450-124GFCI
24Vdc 25A DC/AC Inverter AC Output Receptacle: GFCI Plug, 110VacManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$202.00
3
$190.93
10
$183.39
20
$178.69
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
20~33Vdc
Output Voltage:
110VAC (100/110/115/120)
Max Power:
450 Watts
Features
True sine wave output (THD<3%)
Operating temperature range: -25~+70°C
High surge output power up to 900W
Convection cooled
Fanless inverter
Digital design with MCU control
Built-in remote On/Off control
Front panel indicator for: operation status
No load power dissipation ≤1.5 Watts
Conformal coated
AC output voltage is factory preset at 110Vac (100 / 110 / 115 / 120Vac user selectable by DIP Switch)
Input protections: reverse polarity / DC low alarm / DC low shutdown / overvoltage
Output protections: short circuit / overload / over temperature
MEAN WELL 3 year warranty
