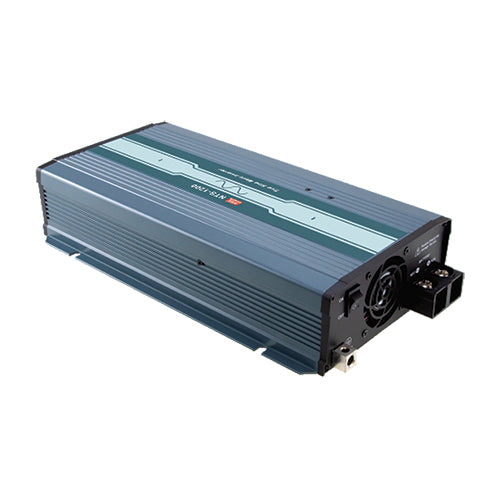

NTS-1200-148US
48Vdc 30A DC/AC Inverter AC Output Receptacle: US Plug, 110VacManufacturer: MEAN WELL
View Data Sheet
In Stock: 4 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$286.67
3
$270.96
10
$260.27
20
$253.59
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
40~66Vdc
Output Voltage:
110VAC (100/110/115/120)
Max Power:
1200 Watts
Features
True sine wave output (THD<3%)
Operating temperature range: -25~+70°C
Safety certification: UL458 (for 112/124 type GFCI only)
High surge output power up to 2000W
Built-in fan
Built-in remote On/Off control
Front panel indicator for: operation status
North American AC receptacle standard (Type-US)
North American AC receptacle optional (Type-GFCI)
No load power dissipation ≤1.5 Watts
Conformal coated
AC output voltage is factory preset at 110Vac (100 / 110 / 115 / 120Vac user selectable by DIP Switch)
Input protections: reverse polarity / DC low alarm / DC low shutdown / overvoltage
Output protections: short circuit / overload / over temperature
MEAN WELL3 year warranty
NTS-1200-148US
48Vdc 30A DC/AC Inverter AC Output Receptacle: US Plug, 110VacManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
40~66Vdc
Output Voltage:
110VAC (100/110/115/120)
Max Power:
1200 Watts
Features
True sine wave output (THD<3%)
Operating temperature range: -25~+70°C
Safety certification: UL458 (for 112/124 type GFCI only)
High surge output power up to 2000W
Built-in fan
Built-in remote On/Off control
Front panel indicator for: operation status
North American AC receptacle standard (Type-US)
North American AC receptacle optional (Type-GFCI)
No load power dissipation ≤1.5 Watts
Conformal coated
AC output voltage is factory preset at 110Vac (100 / 110 / 115 / 120Vac user selectable by DIP Switch)
Input protections: reverse polarity / DC low alarm / DC low shutdown / overvoltage
Output protections: short circuit / overload / over temperature
MEAN WELL3 year warranty
