Power Worth Searching For

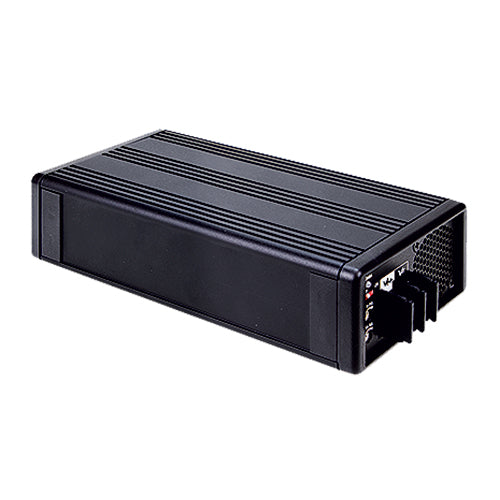

NPB-360-24TB
24Vdc 12A Battery Charger AC Inlet IEC320-C14 Terminal BlockManufacturer: MEAN WELL
View Data Sheet
In Stock: 23 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Charge Voltage:
28.8Vdc
Max Charge Current:
12 Amps
Max Power:
364 Watts
Features
AC input range: 90~264Vac
Operating temperature range: -30~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Built-in PFC
Built-in fan, temperature controlled
LED indicator for charging status
User selectable charging: 2 or 3 stage charging mode
AC inlet: IEC 320-C14
Output connector: Terminal block
On/Off switch
Output voltage and output current adjustable via potentiometers
No load power consumption <0.15 Watts (with AC switch Off)
Optional DC plugs available
Protections: reverse polarity / short circuit / over temperature / overvoltage
MEAN WELL 3 year warranty
