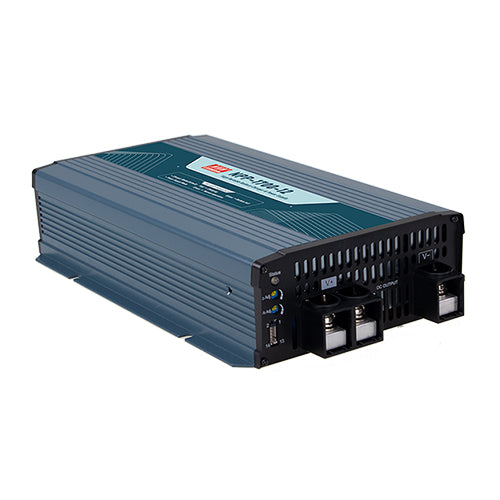

NPB-1700-48
57.6Vdc 25A Battery Charger IntelligentManufacturer: MEAN WELL
View Data Sheet
In Stock: 24 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$423.89
5
$403.77
10
$385.94
20
$374.79
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Charge Voltage:
57.6Vdc
Max Charge Current:
25 Amps
Max Power:
1680 Watts
Features
AC input range: 90~264Vac
Operating temperature range: -30~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Built-in PFC
Charger OK signal
Battery full signal
Built-in fan with fan speed control
LED indicator for charging status
User selectable charging: 2 or 3 stage charging mode
AC inlet: IEC 320-C14
Output connector: Terminal block
On/Off switch
Built-in remote On/Off
Programmable output voltage and output current
Output current adjustable via potentiometers
Protections: battery reverse polarity / battery under voltage / short circuit / over temperature / overvoltage
MEAN WELL 3 year warranty
