Power Worth Searching For

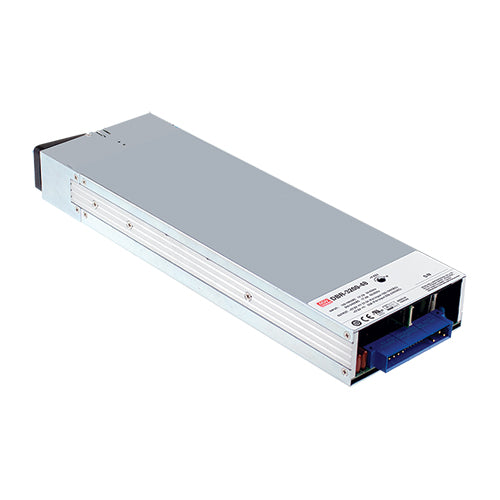

DBR-3200-48
57.6Vdc 55A 48Vdc Battery Charger Rack Mountable Hot Pluggable 180~550Ah BatteriesManufacturer: MEAN WELL
View Data Sheet
In Stock: 3 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$718.31
5
$698.63
10
$671.05
20
$653.85
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Charge Voltage:
57.6Vdc
Max Charge Current:
55 Amps
Max Power:
3168 Watts
Features
AC input range: 90~264Vac
Operating temperature range: -30~+70°C (with derating)
Safety approvals: UL/EN/IEC 62368-1
Built-in 3 stage and programmable charging curves
Built-in I2C interface, PMBUS protocol
Active PFC
High efficiency
Remote On/Off
AC & DC OK signals
12V @ 0.8A auxiliary output
5V @ 0.3A stand-by power
Cooling by built-in thermal controlled DC fans
Programmable output voltage & current
Built-in OR-ing FET, hot-swappable
Current sharing up to 12,800W or N+1 redundancy for one 19 inch rack shelf- DHP-1UT
Protections: battery under voltage / battery no connection / short circuit / over voltage / over temperature
MEAN WELL 5 year warranty
