Manufacturer: Phihong
View Data Sheet
Availability: Contact Us
Lead time for quantities greater than shown, contact us
REQUEST a QUOTE for higher qty discounts
Input Voltage:
90~264Vac
Output Voltage:
56Vdc
Output Min Current:
0.01 Amps
Output Max Current:
0.275 Amps
Output Max Power:
15.4 Watts

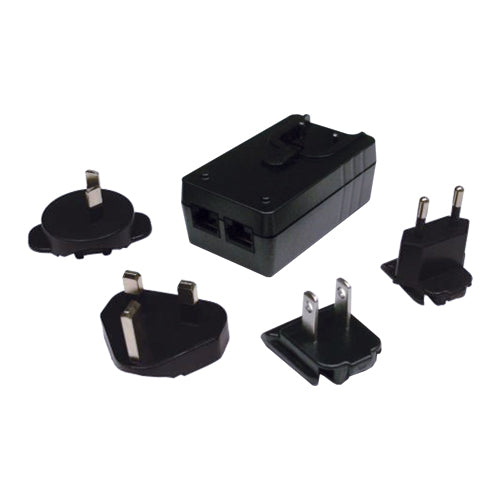

Phihong POE16R-1AFG6-2-R Power Over Ethernet interchangeable wall plug-in adaptor
AC input range: 90~264Vac
Operating temperature range: -20~+45°C
Industrial safety certification: IEC 62368-1, UL 62368-1
Leakage current: 0.5mA max
Fully compliant to isolation requirements IEEE802.3af
Pass LPS
Energy Efficiency Level VI
Gigabit compatible
Interchangeable AC clips (sold seperately)
Data Input/PoE Output Connectors: RJ45
Protections: overvoltage / overcurrent / short circuit
Phihong 1 year warranty
Manufacturer: Phihong
View Data Sheet
Input Voltage:
90~264Vac
Output Voltage:
56Vdc
Output Min Current:
0.01 Amps
Output Max Current:
0.275 Amps
Output Max Power:
15.4 Watts
Phihong POE16R-1AFG6-2-R Power Over Ethernet interchangeable wall plug-in adaptor
AC input range: 90~264Vac
Operating temperature range: -20~+45°C
Industrial safety certification: IEC 62368-1, UL 62368-1
Leakage current: 0.5mA max
Fully compliant to isolation requirements IEEE802.3af
Pass LPS
Energy Efficiency Level VI
Gigabit compatible
Interchangeable AC clips (sold seperately)
Data Input/PoE Output Connectors: RJ45
Protections: overvoltage / overcurrent / short circuit
Phihong 1 year warranty
