Manufacturer: Phihong
View Data Sheet
Availability: Contact Us
Lead time for quantities greater than shown, contact us
REQUEST a QUOTE for higher qty discounts
Input Voltage:
90~264Vac
Output Voltage:
56Vdc
Output Min Current:
0.01 Amps
Output Max Current:
0.275 Amps
Output Max Power:
15.4 Watts

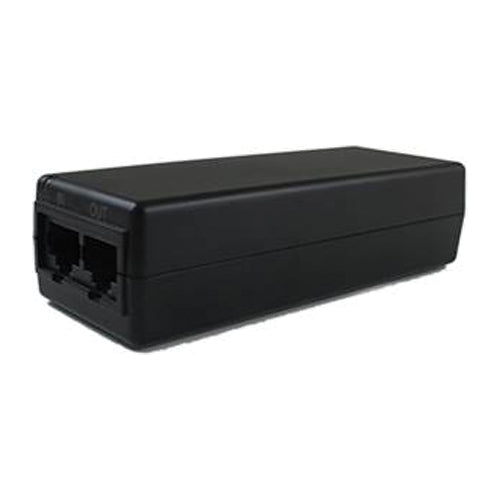

Phihong POE15M-1AFE-R 15.4W single port Power Over Ethernet midspan power injector
AC input range: 90~264Vac
Operating temperature range: -20~+50°C
Industrial safety approvals: cUL/UL 62368-1, cUL/UL 60950-1 listed
Energy Efficiency Level VI
Fully compliant with IEEE 802.3af standard
2.5 gigabit compatible
Limited Power Source
Low leakage current ≤0.5mA
LED indicator for power On
AC inlet: IEC320-C6
Data input/PoE output connector: RJ45
Protections: overvoltage / overcurrent / short circuit
Phihong 1 year warranty
Manufacturer: Phihong
View Data Sheet
Input Voltage:
90~264Vac
Output Voltage:
56Vdc
Output Min Current:
0.01 Amps
Output Max Current:
0.275 Amps
Output Max Power:
15.4 Watts
Phihong POE15M-1AFE-R 15.4W single port Power Over Ethernet midspan power injector
AC input range: 90~264Vac
Operating temperature range: -20~+50°C
Industrial safety approvals: cUL/UL 62368-1, cUL/UL 60950-1 listed
Energy Efficiency Level VI
Fully compliant with IEEE 802.3af standard
2.5 gigabit compatible
Limited Power Source
Low leakage current ≤0.5mA
LED indicator for power On
AC inlet: IEC320-C6
Data input/PoE output connector: RJ45
Protections: overvoltage / overcurrent / short circuit
Phihong 1 year warranty
Availability: Contact Us
Lead time for quantities greater than shown, contact us
REQUEST a QUOTE for higher qty discounts
