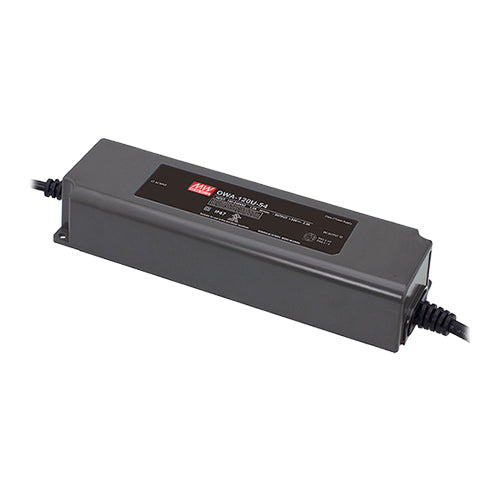

OWA-120U-15

15Vdc 8A, 15 Volts External LED Power Supply UL8750 Listed 15 Volts 8Amps

Manufacturer: MEAN WELL

View Data Sheet

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

*The import tariff is included in the unit price

Quantity
Unit Price
1
$65.32
5
$62.22
10
$59.46
20
$57.73

Specifications

Input Voltage:

90~264Vac

Output Voltage (CV mode):

15Vdc

Output Max Current (CV mode):

8 Amps

Output Current (CC mode):

8 Amps

Constant Current Operating Range:

9~15Vdc

Max Power:

120 Watts

Features

AC input range: 90~264Vac

Wide operating temperature: -40~+70°C

AC plug: NEMA 1-15p male

Built in active PFC

Total Harmonic Distortion: THD < 20% when output loading is ≥ 60%

Class II

Energy efficiency level VI

Operates in constant current or constant voltage mode

Fully enclosed plastic case (UL 94V-0)

High efficiency

IP67 (power supply plastic enclosure only) approved

NRCan compliant

No load power consumption <0.15W

Protections: short circuit / over load / over voltage / over temperature

Applications: residential & commercial LED fixtures

MEAN WELL 5 year warranty
