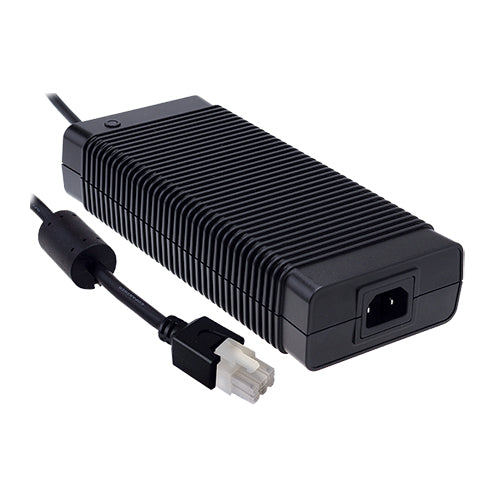

GST360B48-C6P
48Vdc 7.5A; 16AWG/100cm,6PIN 48V Desk Top Power Adaptor, AC Inlet IEC320-C18Manufacturer: MEAN WELL
View Data Sheet
In Stock: 6 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$117.99
5
$112.36
10
$107.41
20
$104.31
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
7.5 Amps
Max Power:
360 Watts
Features
Industrial desktop power supply
AC input range: 85~264Vac
Operating temperature range: -30~+70°C
Safety approvals: UL 62368-1 listed
Industrial safety certification: IEC/EN 62368-1
Complies with EISA 2007/DoE, NRCan
Peak power: Max 450W for 3 seconds
Class II
Energy Efficiency Level VI
LED indicator for power On
Built-in PFC
Operation up to 5000m altitude
AC inlet: IEC 320-C18
DC plug types: Molex C8P 8 pin (12~15V), Molex C6P 6 pin (24~55V)
Over Voltage Category II
Optional DC output plugs available
Protections: overload / overvoltage / over temperature
MEAN WELL 3 year warranty
