Power Worth Searching For

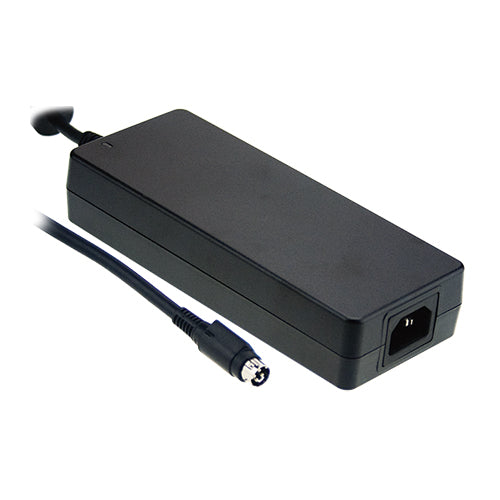

GST160A48-R7B
48Vdc 3.34A; 18AWGx4C/120cm,DIN 4PIN 48Vdc Desk Top Power Supply 3 Pole AC inlet IEC320-C14 48V 3.34AManufacturer: MEAN WELL
View Data Sheet
In Stock: 6 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
3.34 Amps
Max Power:
160 Watts
Features
AC input range: 85~264Vac
Operating temperature range: -30~+70°C
Safety approval: UL 62368-1 listed
Complies with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5
Energy Efficiency Level VI
No load power consumption <0.15W
Built-in active PFC
LED indicator for power on
Class I, 3 pole AC inlet IEC320-C14
DC plug type: 4 pin DIN with lock (optional plug types available)
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
GST160A48-R7B
48Vdc 3.34A; 18AWGx4C/120cm,DIN 4PIN 48Vdc Desk Top Power Supply 3 Pole AC inlet IEC320-C14 48V 3.34AManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
3.34 Amps
Max Power:
160 Watts
Features
AC input range: 85~264Vac
Operating temperature range: -30~+70°C
Safety approval: UL 62368-1 listed
Complies with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5
Energy Efficiency Level VI
No load power consumption <0.15W
Built-in active PFC
LED indicator for power on
Class I, 3 pole AC inlet IEC320-C14
DC plug type: 4 pin DIN with lock (optional plug types available)
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
In Stock: 6 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
